Bluetooth controlled car using Arduino.

Hi there, In this Blog we are going to learn about "Bluetooth controlled car using Arduino".

AIM:- To make a car which can be manually controlled by Arduino with the help of a Motor Driver which acts as a bridge between Arduino and Bluetooth.

Components Required :-


  •  Motor Driver L293D module:-
  • HC -05 Bluetooth Module:-




PROGRAMMING PART :-


#define ml1 6 //sets left motor's positive pin to 6
#define ml2 9 //sets left motor's negative pin to 7
#define mr1 10 //sets right motor's positive pin to 10
#define mr2 11 //sets right motor's negative pin to 11
void setup() {
  pinMode(6,OUTPUT);
  pinMode(9,OUTPUT);
  pinMode(10,OUTPUT);    //declaring all the motor pins as OUTPUT pins.
  pinMode(11,OUTPUT);
  Serial.begin(9600);    //sets baud rate(data per second as 9600, which is assumed to be 9600 per second)
}
void left()              //Function used to rotate the car left by giving an analog speed 200 to right              motor's positive terminal.Maximum speed however can be 255 because of an 8-bit register.
{
  analogWrite(6,0);
  analogWrite(9,0);
  analogWrite(10,200);
  analogWrite(11,0);
}
void right()           //Function used to rotate the car right by giving an analog speed 200 to left motor's positive terminal.
{
  analogWrite(6,200);
  analogWrite(9,0);
  analogWrite(10,0);
  analogWrite(11,0);
}
void forward()        //Function used to move the car forward by giving an analog speed 220 to left and right motor's positive terminal.
{
  analogWrite(6,220);
  analogWrite(9,0);
  analogWrite(10,220);
  analogWrite(11,0);
}
void backward()     //Function used to move the car backward by giving an analog speed 220 to left and right motor's negative terminal.
{
  analogWrite(6,0);
  analogWrite(9,220);
  analogWrite(10,0);
  analogWrite(11,220);
}
void stoop()      //Function to stop the car by giving speed 0 to all of its motors terminals.
{
 analogWrite(6,0);
 analogWrite(9,0);
 analogWrite(10,0);
 analogWrite(11,0);
}
void loop() {
 while(Serial.available()>0)  //checks whether data has been sent from phone or not
 {
  char val= Serial.read();    //Reads the data from phone
  Serial.println(val);
  if(val=='F'){               //Moves the car forward in case user enter F in Bluetooth interface.
  Serial.println("Forward");
  forward();
 }
 else if(val=='B')           //Moves the car backward in case user enter B in Bluetooth interface.
 {
  Serial.println("Backward");
  backward();
 }
 else if(val=='L')           //Moves the car left in case user enter L in Bluetooth interface.
 {
  Serial.println("Left");
  left();
 }
 else if(val=='R')          //Moves the car right in case user enter R in Bluetooth interface.
 {
  Serial.println("Right");
  right();
 }
 else if(val=='S')          //Stops the car in case user enter S in Bluetooth interface.
 {
  Serial.println("Stoop");
  stoop();
 }
 }
}






Comments

Post a Comment

Popular posts from this blog

What is Arduino?

Arduino :- It is an open-source electronics platform ( Basically a programmable electronics board ) which are used to create real life projects. Now, you must wonder what is an open-source? well, open-source means any platform whose source code are easily available, one can easily use it anywhere without anyone's permission. Now, how does an Arduino look like? Umm ! So here you go:- Okay, so after seeing the Arduino we can infer that:- It contains 14(0-13) digital input output pins , out of which 6 pins(marked with curly sign) can be used as PWM pins. It has 6 Analog input(only) pins marked A0 to A5 from which we can receive analog values.  The digital pins (from 0-13) works on 8-bit mode means that they can give output or receive input having analog values (for Analog or PWM pins) ranging from 0-255.  The 6 Analog pins works on 10-bit mode means they give values ranging between 0-1023.
Read more

Interfacing Liquid Crystal Display using ATmega 16

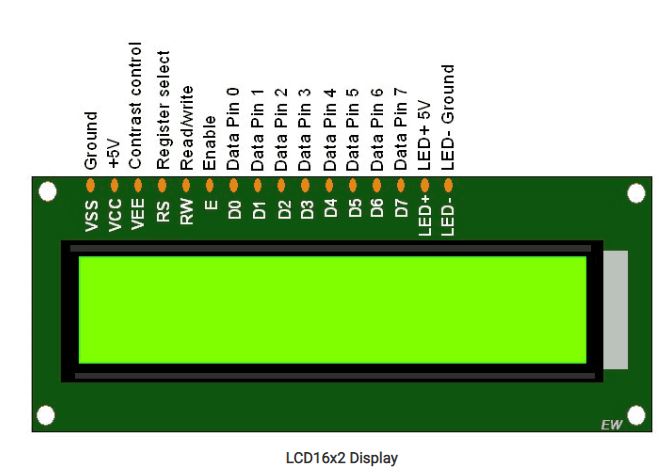

Hey there ! In this blog, we are going to start Interfacing LCD with Atmega16. First of all, let's deal with LCD :- LCDs (Liquid Crystal Displays) are used for displaying status or parameters in embedded systems. LCD 16x2(For it is having 16 rows and 2 columns) is a 16 pin devices which has 8 data pins (D0-D7) and 3 control pins (RS, RW, EN). The remaining 5 pins are for supply and backlight for the LCD. The control pins help us configure the LCD in command mode or data mode. They also help configure read mode or write mode and also when to read or write. LCD 16x2 can be used in 4-bit mode or 8-bit mode depending on requirement of application. In order to use it we need to send certain commands to the LCD in command mode and once the LCD is configured according to our need, we can send the required data in data mode. A 16*2 LCD somewhat look like:-   Basic functions required to interface an LCD with Atmega 16:- Since LCD is connected to PORTA, so PORTA...
